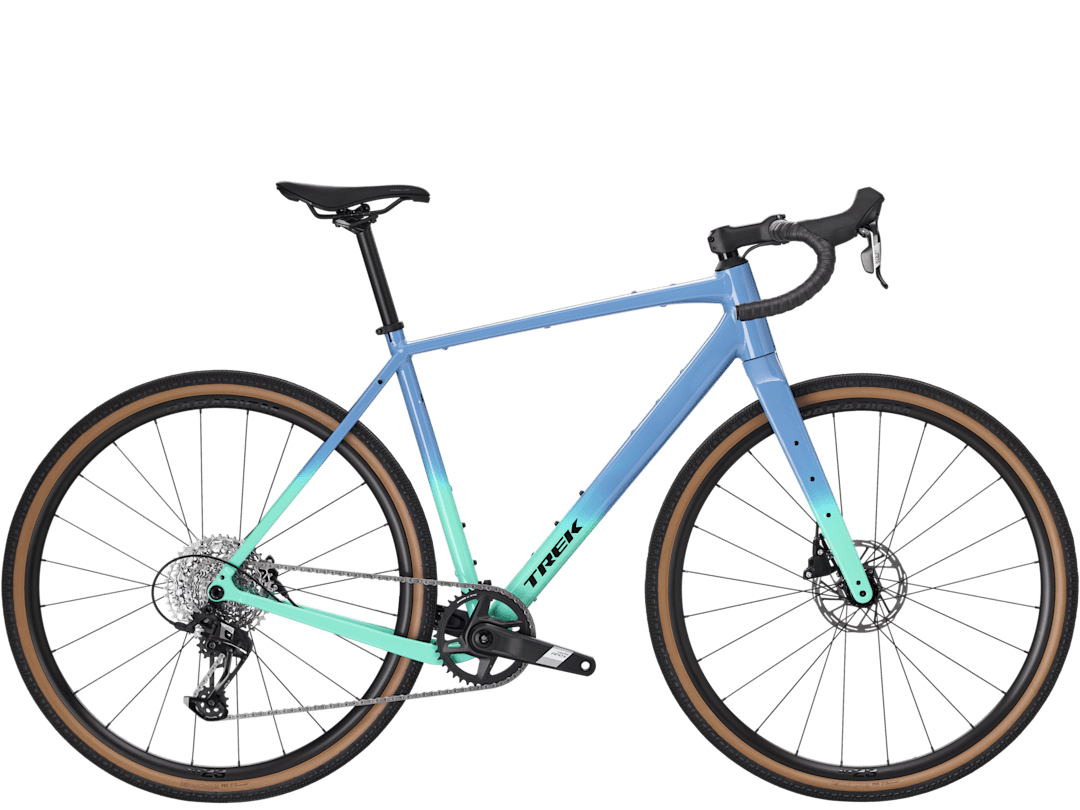

Trek- Checkpoint ALR 5 Gen 3, Fjord Blue to Miami Green Fade - Size S
Product Details
Brand: Trek
Checkpoint ALR 5 is an aluminum gravel bike built for riders who want to go farther, faster. Its modern endurance geometry pairs with a carbon fork for road-smoothing comfort, while clearance for up to 50mm tires adds traction and confidence on rough terrain. A SRAM Apex XPLR 12-speed drivetrain, hydraulic disc brakes, Tubeless Ready Bontrager Paradigm wheels, and plenty of mounts for bags and gear make it ready for big adventures.
- Frame
-
300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle
- Fork
- Weight
- ML - 9.87 kg / 21.76 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
- Shifter
-
SRAM Apex, 12 speed
- Rear derailleur
-
SRAM Apex XPLR, 44T max cog
- *Crank
-
Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165mm lengthSize: M, ML
SRAM Apex 1, 40T, DUB Wide, 170mm lengthSize: L, XL
SRAM Apex 1, 40T, DUB Wide, 172.5mm length - Bottom bracket
-
SRAM DUB Wide, T47 threaded, internal bearing
- Cassette
-
SRAM XPLR PG-1231, 11-44, 12 speed
- Chain
-
SRAM Apex, 12 speed
- Max chainring size
- 1x:44 2x: 46/30
- Hub front
-
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- Skewer front
- Hub rear
-
Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
- Skewer rear
- Rim
- Spokes
-
14g stainless steel, black
- Tire
-
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
- Tire part
-
Bontrager TLR sealant, 6oz
- Max tire size
- 50mm without fenders, 42mm with fenders (as measured, see manual for details)
- Saddle
- Seatpost
-
Bontrager alloy, 27.2mm, 12mm offset, 330mm length
- *Handlebar
- Handlebar tape
-
Bontrager Supertack Perf tape
- *Stem
- Brake
-
SRAM Apex D1 hydraulic disc, flat mount
- Brake rotor
-
SRAM Paceline, rounded, centerlock, 160mm
- Brake lever
-
SRAM Apex, 12 speed
- Rotor size
- Max brake rotor sizes: 180mm front & rear
