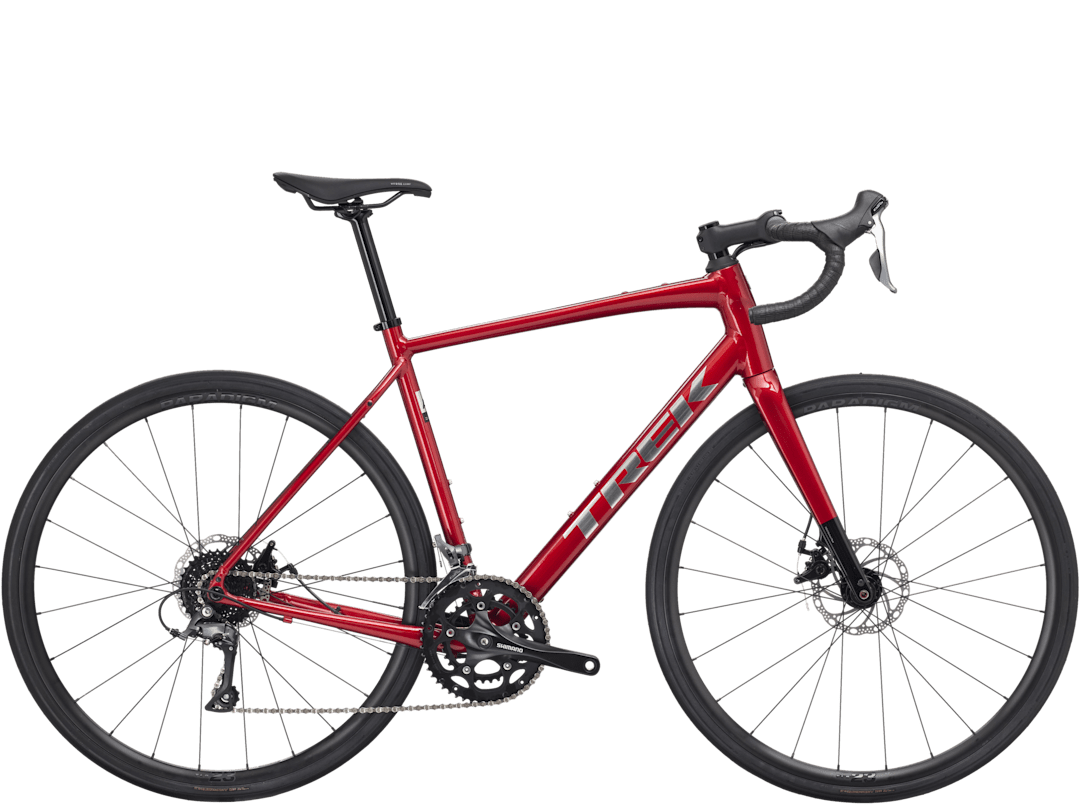

Name: Trek-Domane AL 2 Gen 4, Fury Red Size 49
Brand: Trek
SKU: 197216436874
Price: 1199.99 USD
Availability: InStock

Trek-Domane AL 2 Gen 4, Fury Red Size 49

+5

+4

+3

+2

Trek-Domane AL 2 Gen 4, Fury Red Size 49

Product Details

Brand: Trek

Domane AL 2 is a lightweight road bike built for new riders who want speed, versatility, and confidence on the road. It features an Alpha Aluminum frame, an 8-speed Shimano Claris drivetrain, and a comfortable all-day geometry that’s great for group rides, fitness riding, or fast commutes. Rack, fender, and top tube mounts add everyday utility, and clearance for larger tires means you can venture off the pavement onto light gravel.

Frame: 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork: Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight: 56 - 10.35 kg / 22.82 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

*Shifter: Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-L, 8 speed, left

Size: 44, 49, 52, 54, 56, 58, 61
Shimano Claris ST-R2000-R, 8 speed, right
Front derailleur: Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Rear derailleur: Shimano Claris RD-R2000, long cage, 34T max cog
*Crank: Size: 44, 49, 52, 54, 56

Shimano RS200, 50/34 (compact), 165mm length

Size: 58, 61
Shimano RS200, 50/34 (compact), 175mm length
Bottom bracket: Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Cassette: Shimano HG31, 11-32, 8 speed
Chain: Shimano Sora HG71, 8 speed
Max chainring size: 1x: 50T, 2x: 50/34

Hub front: Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front: Bontrager Switch chamfered thru axle
Hub rear: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear: Bontrager Switch chamfered thru axle, removable lever
Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
Tire: Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Saddle: Verse Short Comp, steel rails, 145mm width
*Seatpost: Size: 44, 49

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length

Size: 52, 54, 56, 58, 61

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
*Handlebar: Size: 44
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width

Size: 49, 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width

Size: 54, 56, 58
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width

Size: 61
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape: Trek gel cork
*Stem: Size: 44

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: 49

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: 52, 54

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: 56, 58

Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 100mm length

Size: 61

Bontrager Elite, 31.8mm clamp, Blendr compatible, 7 degree, 110mm length
Brake: Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor: Tektro wave, 6-bolt, 160mm
Rotor size: Max brake rotor sizes: 160mm front & rear

Trek-Domane AL 2 Gen 4, Fury Red Size 49

Weight

Drivetrain

Wheels

Components
